PATENT PRODUCTS
COUNTERFEITING WILL BE HELD LIABLE
PETENT NO. ZL201822045200.5
FEATURE:

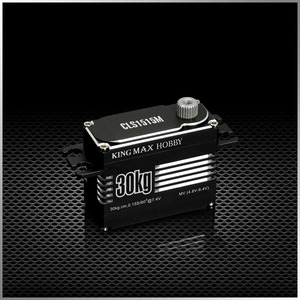

-- High performance, digital Multivoltage mini servo
-- Patent gear chain design,more stable and durable

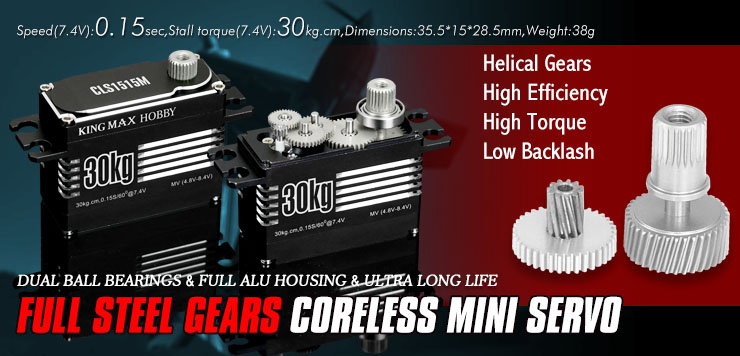

-- High Precision Helical Gears Structure

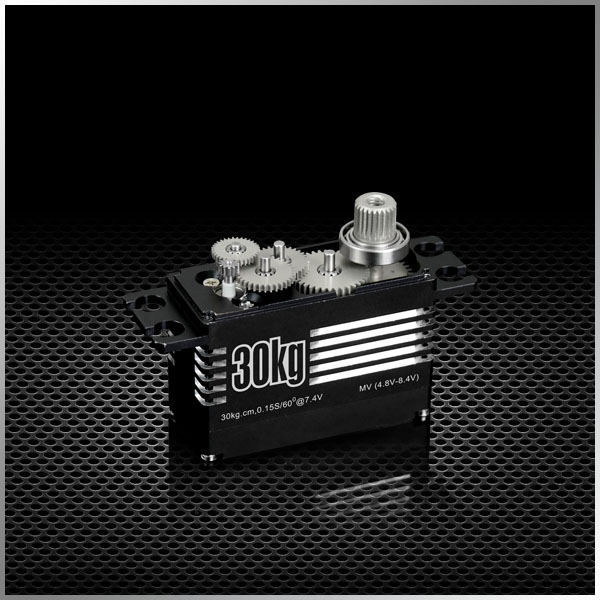

-- High-precision steel gear
-- Full CNC aluminium hulls and structure
-- High quality coreless motor
-- Dual ball bearings
SPECIFICATIONS:
Operating Speed(5.0V):0.21sec/60degrees
Operating Speed(6.0V):0.18sec/60degrees
Operating Speed(7.4V):0.15sec/60degrees
Operating Speed(8.4V):0.13sec/60degrees
Stall torque(7.4V):30kg.cm(416.70oz/in)
Maximum working torque(7.4V):20kg.cm(277.80oz/in)
Rated working torque(5.0V):7.5kg.cm(104.17oz/in)
Rated working torque(6.0V):10kg.cm(138.90oz/in)
Rated working torque(7.4V):12kg.cm(166.68oz/in)
Rated working torque(8.4V):15kg.cm(208.35oz/in)
Dimensions:35.5*15*28.5mm/1.38X0.58X1.11in
Weight:38g(1.34oz)
Connector Wire Length:JR265mm(10.3in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 70g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:7.45kg
Optional Accessories:
CLS1515M-001:Offered accessories
CLS1515M-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
Life testing with loading weight
