FEATURE:
-- High performance, digital standard servo
-- High-precision steel gears
-- Full CNC aluminium hulls and structure
-- High quality 4 Pole Brushless motor
-- Dual ball bearings
-- Waterproof
SPECIFICATIONS:
Operating Speed(5.0V):0.13sec/60degrees
Operating Speed(6.0V):0.11sec/60degrees
Operating Speed(7.4V):0.09sec/60degrees
Operating Speed(8.4V):0.08sec/60degrees
Stall torque(7.4V):56.0kg.cm(777.84oz/in)
Maximum working torque(7.4V):32.0kg.cm(444.48oz/in)
Rated working torque(5.0V):14.5kg.cm(201.40oz/in)
Rated working torque(6.0V):17.3kg.cm(240.29oz/in)
Rated working torque(7.4V):21.0kg.cm(291.69oz/in)
Rated working torque(8.4V):24.0kg.cm(333.36oz/in)
Dimensions:40*20*30.5mm/1.56X0.78X1.18in
Weight:71g(2.50oz)
Connector Wire Length:JR320mm(12.4in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 135g
Carton box size: 43x26.5x20.5cm 100sets/1CTN Gross weight:14kg
Optional Accessories:

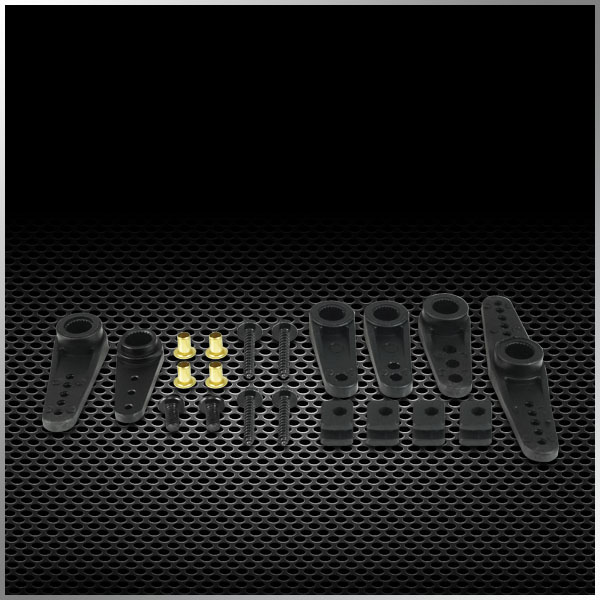

BLS06L-001:Offered accessories
BLS06L-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
