Product Detail

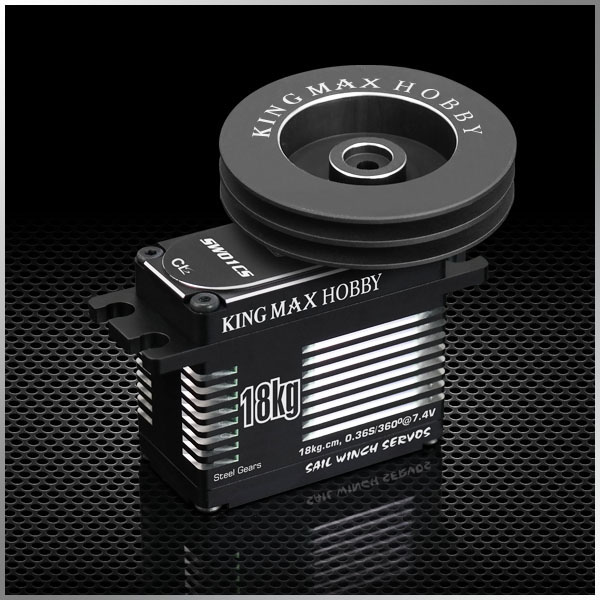

SW01CS--77g 18kg.cm,digital,steel gears sail winch servo

Item: SW01CS
Gear: Steel gear
Spline: Standard 25T
Motor: Coreless motor
Bearing: 2BB
Dead band: 2μs default
Waterproof: Yes
Operating Voltage: DC5.0~8.4V
Rated working voltage: DC 7.4V
Working frequency: 1520μs/330hz
Working temperature: -10℃~+50℃
Storage temperature: -20℃~+60℃
Detail

FEATURE:

-- High performance programmable digital standard sail winch servo for competitions

-- Full CNC aluminium hulls and structure

-- Suitable for the class same as IOM

-- High quality coreless motor

-- Durable steel gears

-- Dual ball bearings

-- Super long life

-- Waterproof

SPECIFICATIONS:

Turn: 1~8T(programmable)

Operating Speed(5.0V):0.48sec/360 degrees

Operating Speed(6.0V):0.42sec/360 degrees

Operating Speed(7.4V):0.36sec/360 degrees

Operating Speed(8.4V):0.30sec/360 degrees

Stall Torque(5.0V):12kg.cm(166.68oz/in)

Stall Torque(6.0V):14.5kg.cm(201.41oz/in)

Stall Torque(7.4V):18kg.cm(250.02oz/in)

Stall Torque(8.4V):20kg.cm(277.80oz/in)

Dimensions:40*20*36.5mm /1.56*0.78*1.42in

Weight:77g(2.71oz)

Connector Wire Length:JR320mm(12.48in)

Packing Detail:

Transparent plastic box size:83.5mmx63.5mmx37.5mm   weight:121g

Carton box   size:43x26.5x20.5cm   100sets/1CTN   Gross weight:12.55kg

Optional Accessories:

SW01CS-001:line wheel bag(icluding line wheel, wheel cover, eyelets, screws, and rubber grommets)

SW01CS-002:1set of gears(need to pay), including gears, shafts and 2 bearings(not include motor gear)
