RGD01L--52g,digital,metal gears low profile servo

Item: RGD01L
Gear: Full metal
Spline: Standard 25T
Motor: DC motor
Bearing: 2BB
Dead band: 2μs default
Waterproof: Yes
Operating Voltage: DC5.0~8.4V
Rated working voltage: DC 7.4V
Working frequency: 1520μs/330hz
Working angle: ±63°@800us-2200us
Working temperature: -10℃~+50℃
Storage temperature: -20℃~+60℃


-- Programmable high performance digital low profile servo

-- High precision metal gears

-- High quality DC motor

-- Middle CNC aluminium case

-- Dual ball bearings

-- Waterproof


Operating Speed (5.0V):0.14sec/60 degrees

Operating Speed (6.0V):0.12sec/60 degrees

Operating Speed (7.4V):0.10sec/60 degrees

Operating Speed (8.4V):0.09sec/60 degrees

Stall Torque (5.0V) (143.06oz/in)

Stall Torque (6.0V) (166.68oz/in)

Stall Torque (7.4V) (208.35oz/in)

Stall Torque (8.4V) (236.13oz/in)

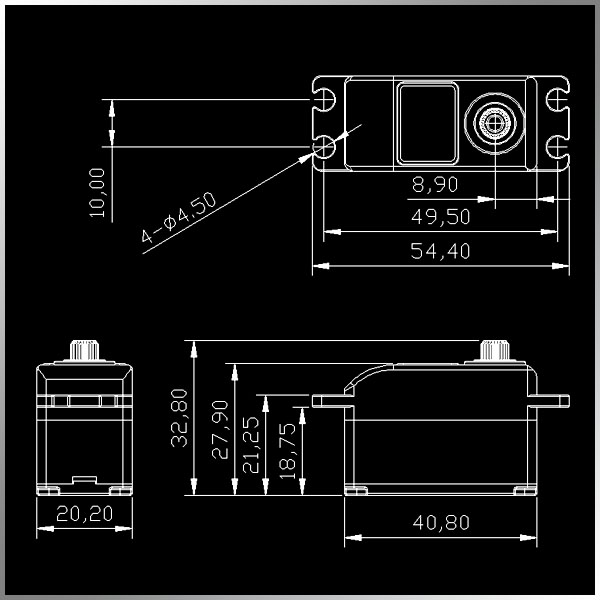

Dimensions:40X20X27.9mm /1.56X0.78X1.08in

Weight:52.5g (1.85oz)

Connector Wire Length:JR300 mm (11.70in)

Packing Detail:

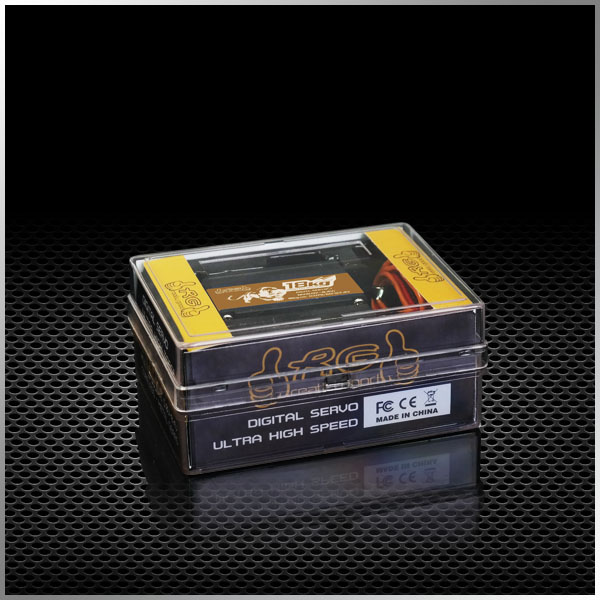

Transparent plastic box size: 83.5x63.5x37.5mm   weight: 100.5g

Carton box size: 43x26.5x20.5cm 100sets/1CTN    Gross weight: 10.5kg

Optional Accessories:

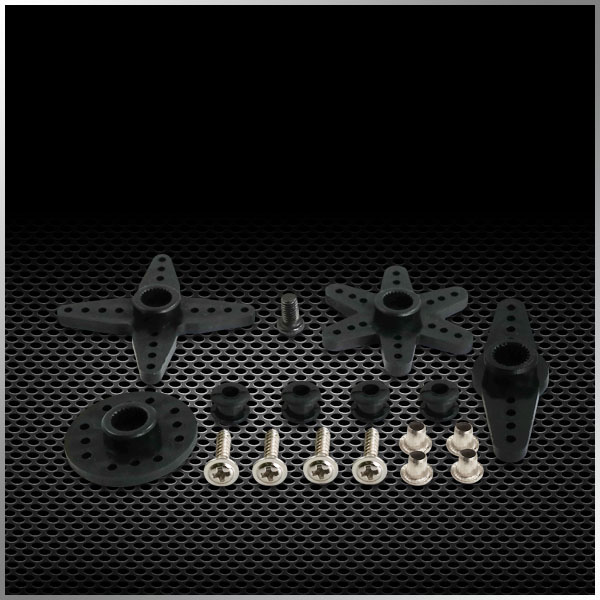

RGD01L-001:Offered accessories

RGD01L-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)

Life testing with loading weight
