FEATURE:
-- High-precision plasitc gears for smooth action and durability
-- Good for CCPM
-- Coreless motor
-- Mature circuit design scheme,quality motors and electronic components makes the servo stable,accurate and reliable
SPECIFICATIONS:
Control System: +Pulse Width Control
Operating Temperature Range: -10 to + 600C
Operating Speed (4.8V): 0.11sec/60 degrees at no load
Stall Torque (4.8V): 1.22 kg.cm (16.95 oz/in)
Potentiometer Drive: Direct Drive

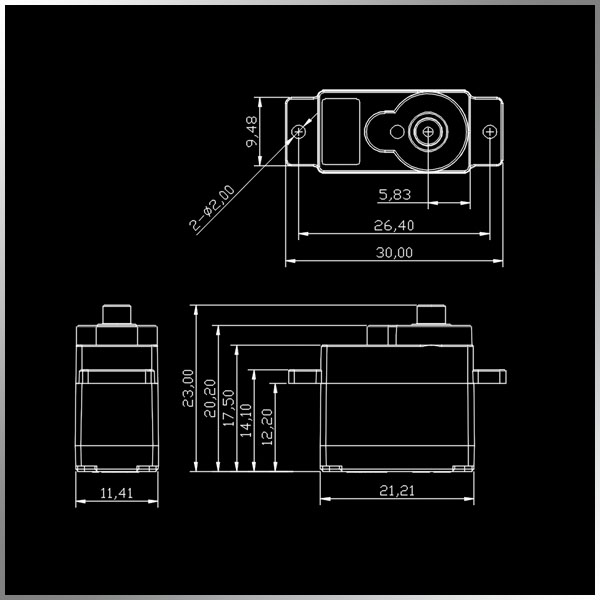

Dimensions: 21.5X12X21 mm /0.85 X0.47X0.83 in
Weight: 5.23 g (0.18oz)
Connector Wire Length: JR/Futaba 180 mm (7.09in)
Optional Accessories:

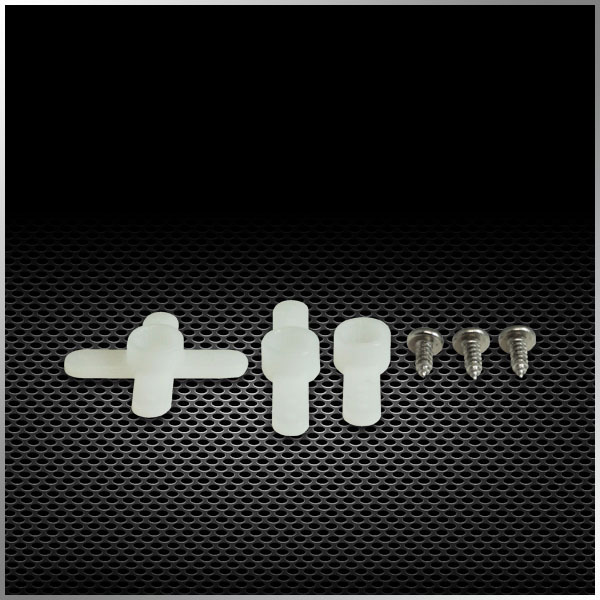

KM-05A-001:Offered accessories
KM-05A-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
